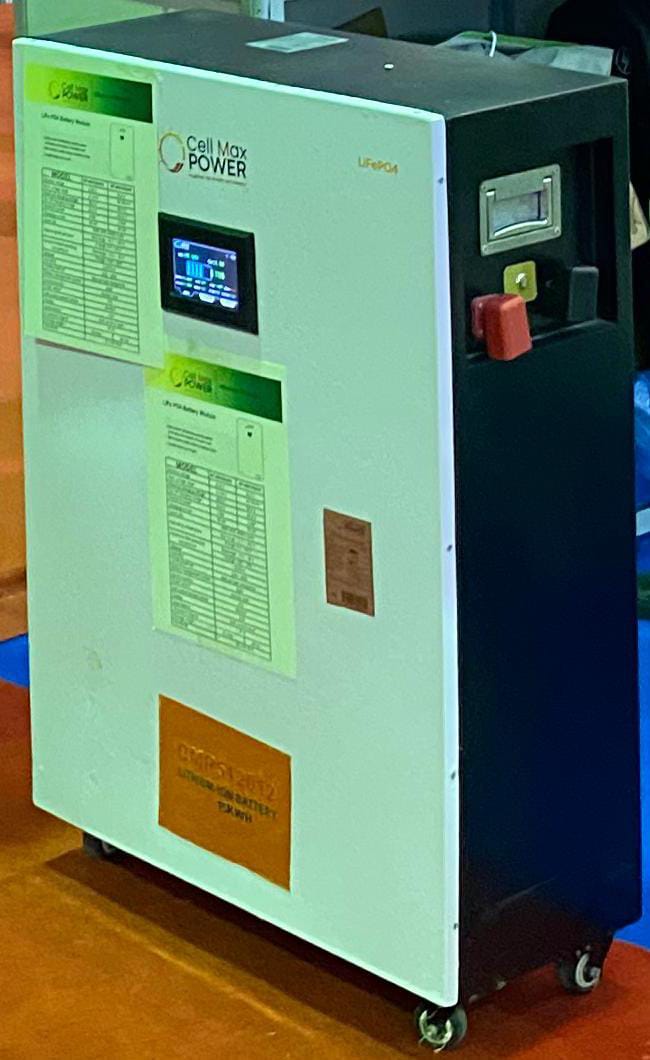

CMP512012 – 15kW Lithium Battery Pack (51V)
The CMP512012 is a high-performance Lithium Iron Phosphate (LiFePO₄) battery pack engineered for reliable, long-lasting energy storage. With a nominal voltage of 51.2V and a robust 15kWh capacity, it delivers consistent power for industrial, commercial, and renewable energy applications. Built with advanced safety features and a durable design, it ensures dependable operation for years to come.

Key Specifications:

• Nominal Voltage: 51.2V
• Capacity: 294Ah (15kW / 51.2V)
• Energy: 15kWh
• Chemistry: Lithium Iron Phosphate (LiFePO₄)
• Cycle Life: Up to 6,000 cycles (80% DoD)
• Self-Discharge Rate: < 3% per month

Electrical Performance:

• Max Charge Current: 75A (0.5C)
• Max Discharge Current: 150A (1C)
• Peak Discharge Current: 300A (2C, 10s)
• Charge Cut-off Voltage: 58.4V ± 0.1V
• Discharge Cut-off Voltage: 40V ± 0.1V

Safety & Protection:

• Overcharge protection
• Over-discharge protection
• Short circuit protection
• Integrated temperature monitoring

Warranty:

• Period: 5 years

Applications:

• Industrial energy storage systems
• Commercial power backup solutions
• Renewable energy storage for solar & wind systems
